Světlíkové manžety - podsady
Používá se tam, kde je stávající podsada (manžeta) před rekonstrukcí kopule nerovná nebo má nevyhovující rozměry jako přechodový prvek mezi stávajícím podkladem a novou kopulí. Používá se jak na pevné spojení kopule s podsadou, tak se může použít v kombinaci s PVC nebo Al větracím rámečkem pro kopuli větrací. Novinkou roku 2020 je nabídka PVC rámu také v matném odstínu RAL 7016 antracit šedá.

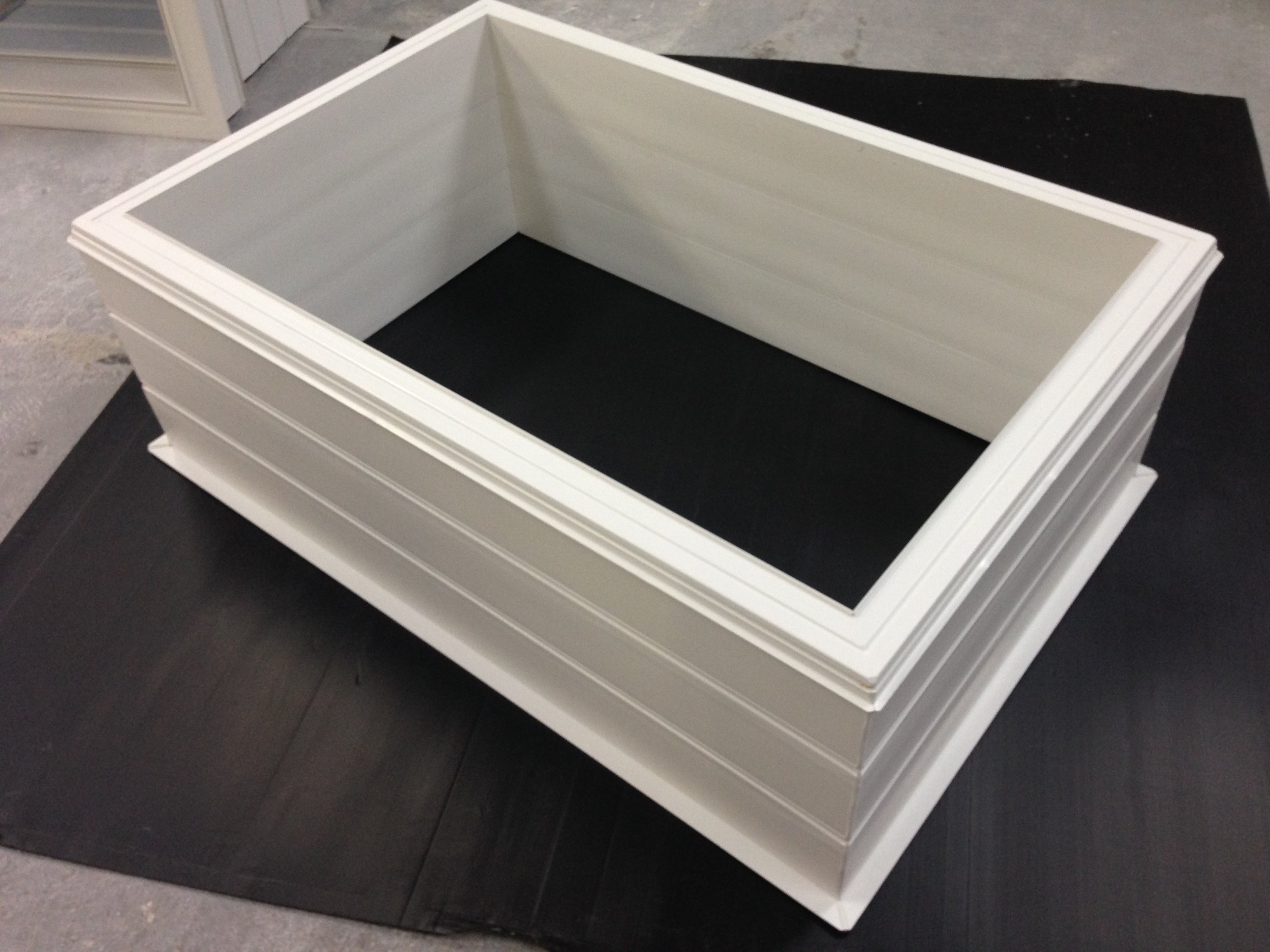

manzeta_PVC

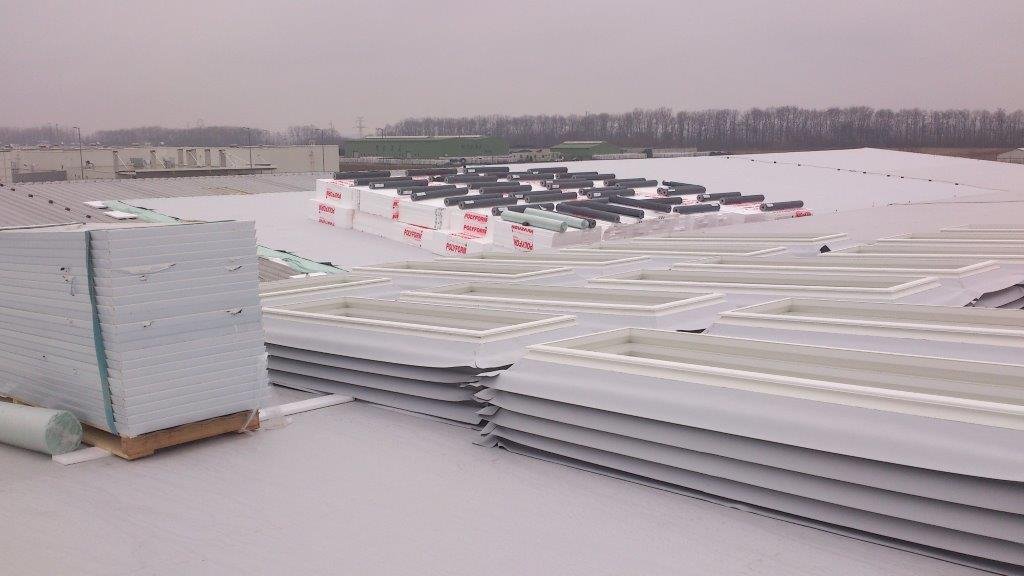

manzeta_PVC_pred_montazi

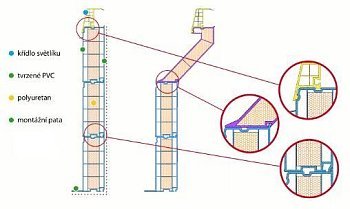

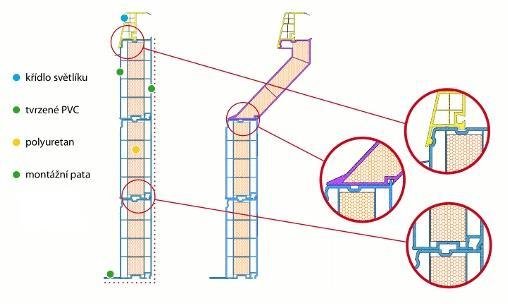

manz_PVC_zamek

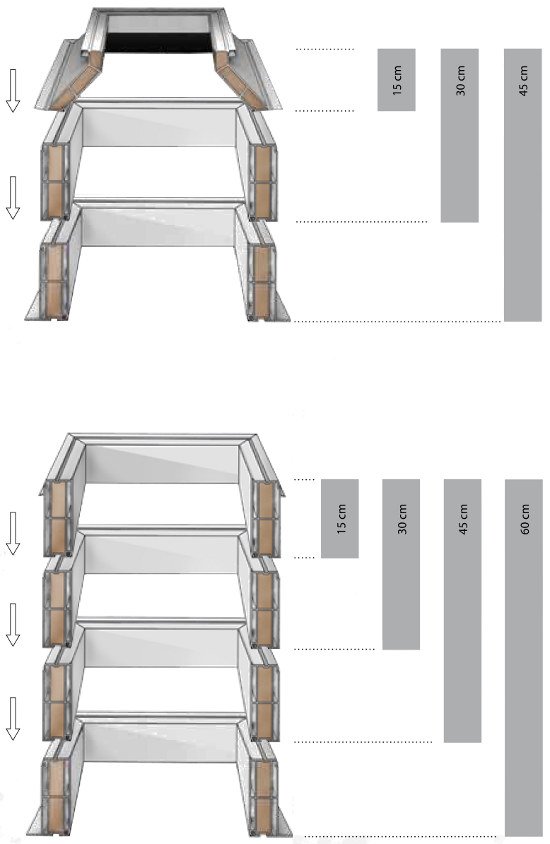

manzeta-tvrzene-PVC-rozmery
manzeta_lamin

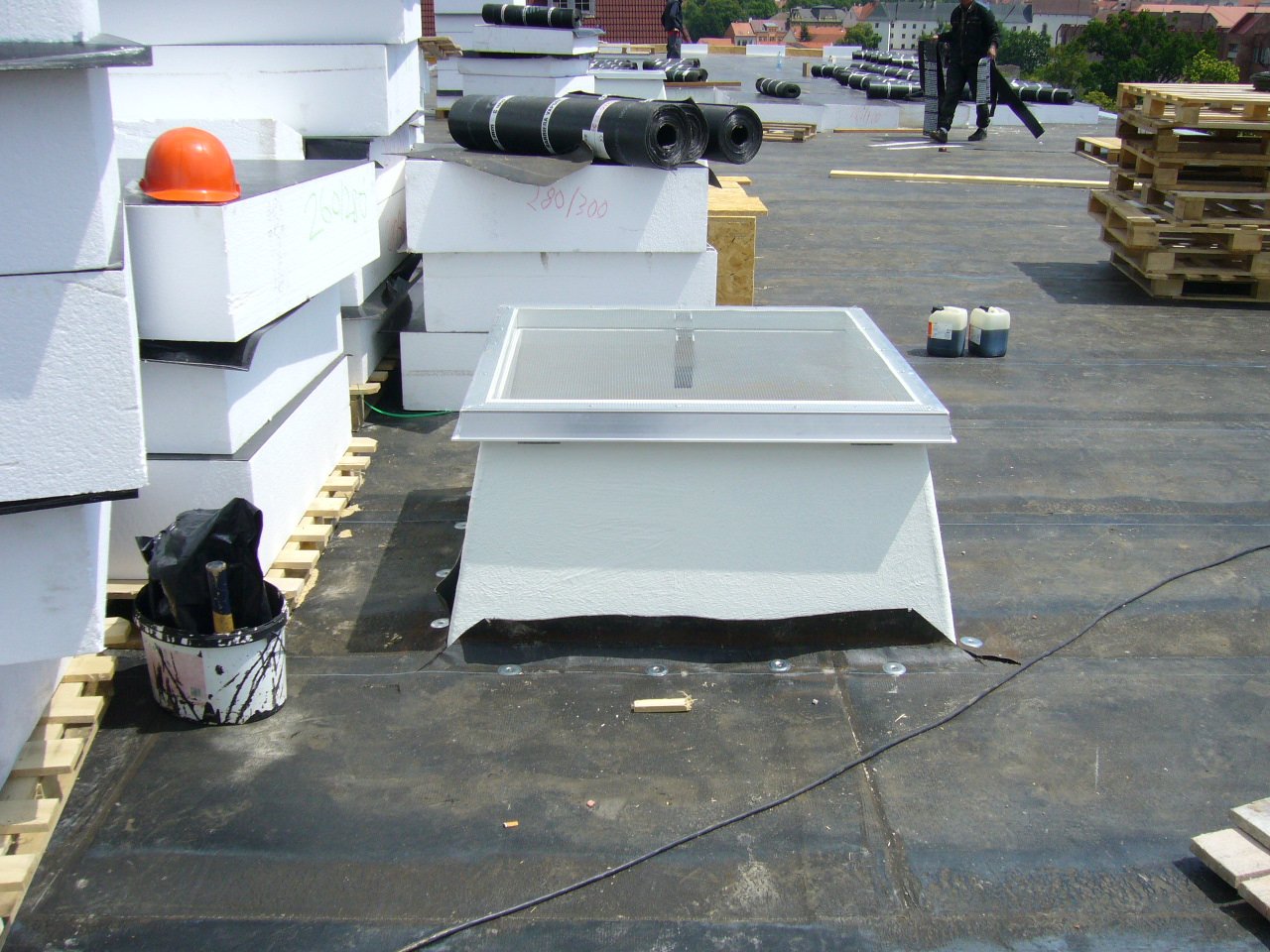

manzeta_lamin_na_strese
Manžeta_laminát_-_šikmá

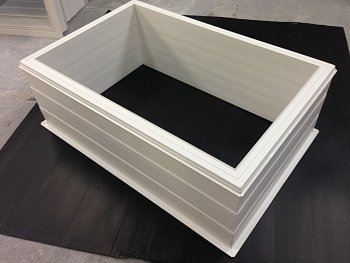

manzeta_PVC

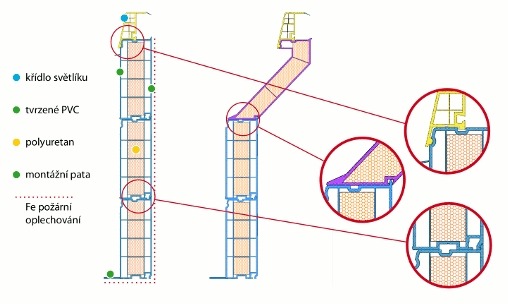

manzeta_PVC_zamek_fe

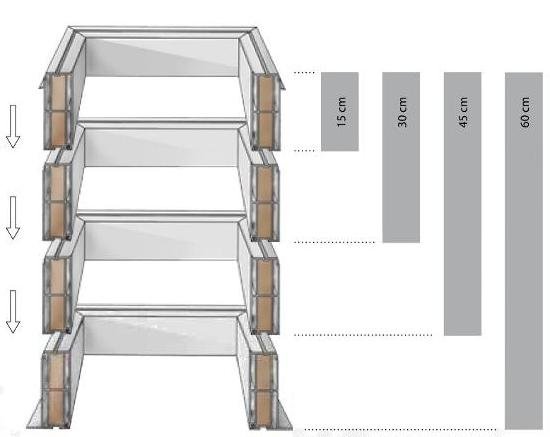

manz_PVC_kolma

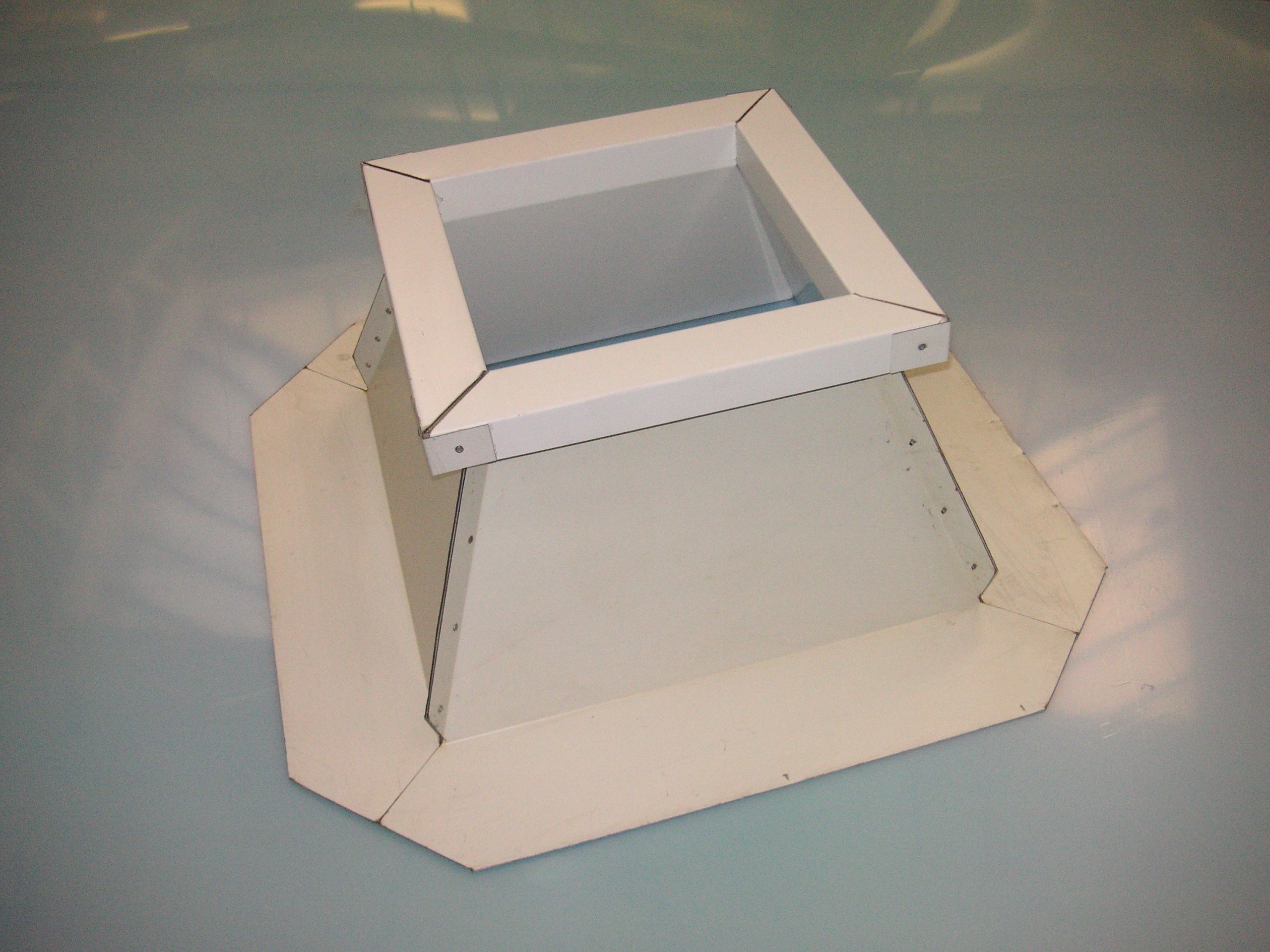

manzeta_ocel

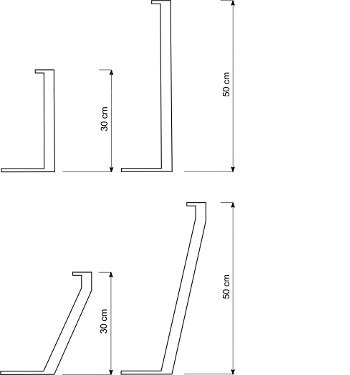

ACG-manzeta-ocel-lakovana
ACG-manzeta-ocel-rozmery
P
DOKUMENTY
Manžeta - tvrzené PVC

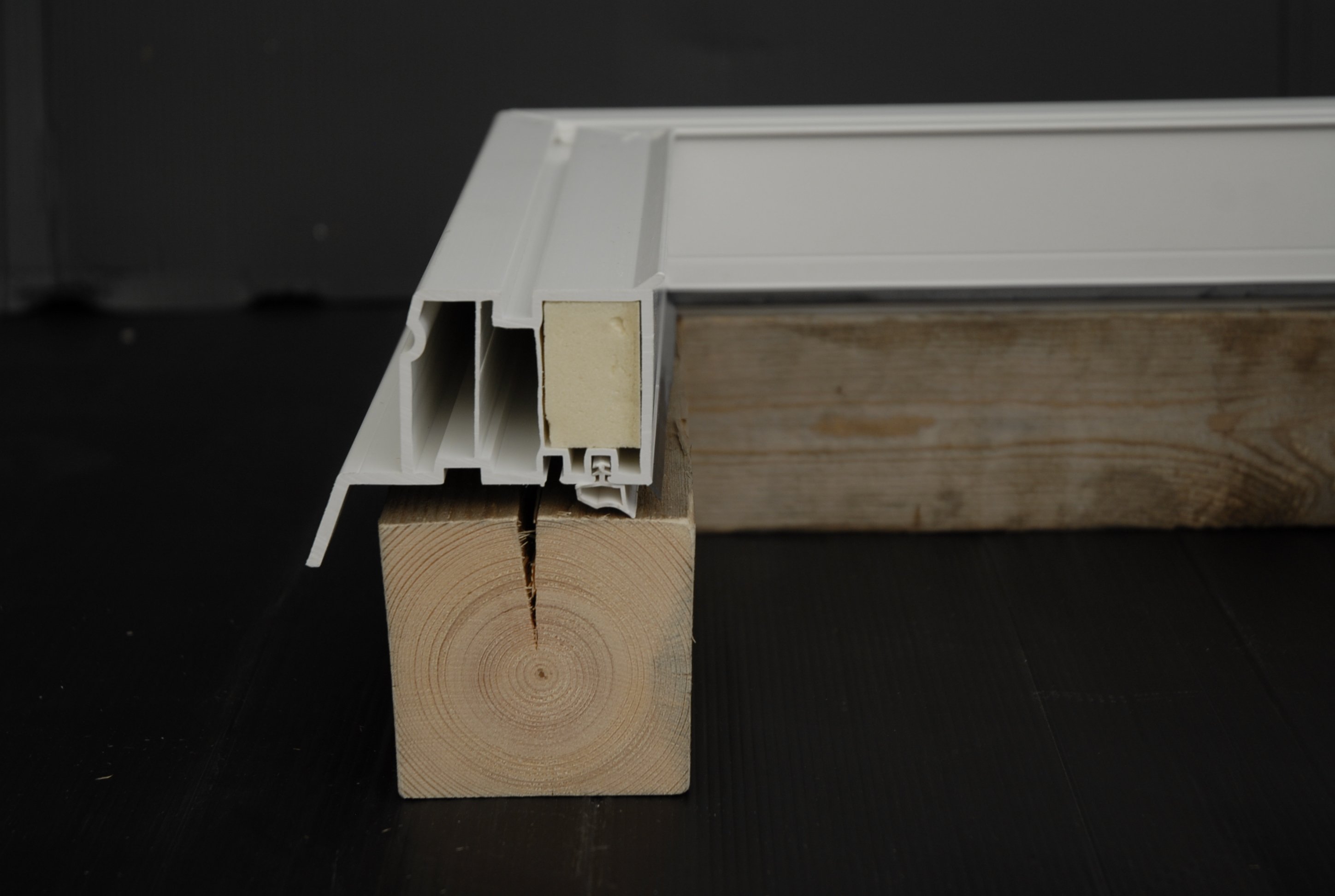

Komfortní manžeta kolmá z tvrzeného PVC
Zobrazit ceník- výška 15, 30, 45, 60, 75 cm
- vnější a vnitřní vrstva tvrzené PVC
- vnitřní izolace polyuretan tl. 30 mm
Up = 0,92 W/m2.K
TECHNICKÉ LISTY
TECHNICKÉ VÝKRESY
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| 30x30 | 5 713,- / 18.36kg |
| 30x80 | 7 855,- / 31.11kg |
| 40x40 | 6 570,- / 23.46kg |
| 40x70 | 7 855,- / 31.11kg |
| 40x100 | 9 141,- / 38.76kg |
| 50x50 | 7 427,- / 28.56kg |
| 60x60 | 8 283,- / 33.66kg |
| 60x90 | 9 569,- / 41.31kg |
| 60x150 | 12 138,- / 56.61kg |
| 60x200 | 15 233,- / 69.36kg |
| 60x220 | 16 146,- / 74.46kg |
| 70x70 | 9 141,- / 38.76kg |
| 70x100 | 10 425,- / 46.41kg |
| 75x75 | 9 569,- / 41.31kg |
| 75x120 | 11 496,- / 52.79kg |
| 80x80 | 9 998,- / 43.86kg |
| 80x130 | 12 948,- / 56.61kg |
| 80x180 | 15 233,- / 69.36kg |
| 80x220 | 17 061,- / 79.56kg |
| 80x230 | 17 519,- / 82.11kg |
| 80x280 | 19 803,- / 94.86kg |
| 90x90 | 10 854,- / 48.96kg |
| 90x120 | 12 948,- / 56.61kg |
| 90x150 | 14 320,- / 64.26kg |
| 100x100 | 12 491,- / 54.06kg |
| 100x130 | 13 863,- / 61.71kg |
| 100x150 | 14 777,- / 66.81kg |
| 100x160 | 15 233,- / 69.36kg |
| 100x200 | 17 061,- / 79.56kg |
| 100x220 | 17 976,- / 84.66kg |
| 100x230 | 18 432,- / 87.21kg |
| 100x250 | 19 347,- / 92.31kg |
| 120x120 | 14 320,- / 64.26kg |
| 120x150 | 15 690,- / 71.91kg |
| 120x180 | 17 061,- / 79.56kg |
| 120x210 | 18 432,- / 87.21kg |
| 130x130 | 15 233,- / 69.36kg |
| 130x160 | 16 604,- / 77.01kg |
| 130x190 | 17 976,- / 84.66kg |
| 130x220 | 19 347,- / 92.31kg |
| 130x230 | 19 803,- / 94.86kg |
| 130x250 | 20 717,- / 99.96kg |
| 140x140 | 16 146,- / 74.46kg |
| 150x150 | 17 061,- / 79.56kg |
| 160x160 | 17 976,- / 84.66kg |
| 160x220 | 20 717,- / 99.96kg |
| 160x230 | 21 173,- / 102.51kg |
| 160x250 | 22 088,- / 107.61kg |
| 180x180 | 19 803,- / 94.86kg |
| 200x200 | 21 631,- / 105.06kg |
Rozměry, ceny bez DPH
Zobrazit ceník
Komfortní manžeta šikmá z tvrzeného PVC
Zobrazit ceník- výška 15, 30, 45, 60, 75 cm
- vnější a vnitřní vrstva tvrzené PVC
- vnitřní izolace polyuretan tl. 30 mm
Up = 0,88 W/m2.K
TECHNICKÉ LISTY
TECHNICKÉ VÝKRESY
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| 30x30 | 6 930,- / 27.63kg |
| 30x80 | 9 024,- / 40.43kg |
| 40x40 | 7 768,- / 32.75kg |
| 40x70 | 9 024,- / 40.43kg |
| 40x100 | 10 283,- / 48.11kg |
| 50x50 | 8 605,- / 37.87kg |
| 50x100 | 2 971,- / 8.4kg |
| 60x60 | 9 445,- / 42.99kg |
| 60x90 | 10 702,- / 50.67kg |
| 60x150 | 13 214,- / 66.03kg |
| 60x200 | 16 330,- / 78.83kg |
| 60x220 | 17 224,- / 83.95kg |
| 70x70 | 10 283,- / 48.11kg |
| 70x100 | 11 540,- / 55.79kg |
| 75x75 | 10 702,- / 50.67kg |
| 75x120 | 12 585,- / 62.19kg |
| 80x80 | 11 121,- / 53.23kg |
| 80x130 | 14 096,- / 66.03kg |
| 80x180 | 16 330,- / 78.83kg |
| 80x220 | 18 117,- / 89.07kg |
| 80x230 | 18 565,- / 91.63kg |
| 80x280 | 20 799,- / 104.43kg |
| 90x90 | 11 957,- / 58.35kg |
| 90x120 | 14 096,- / 66.03kg |
| 90x150 | 15 435,- / 73.71kg |
| 100x100 | 13 648,- / 63.47kg |
| 100x130 | 14 988,- / 71.15kg |
| 100x150 | 15 881,- / 76.27kg |
| 100x160 | 16 330,- / 78.83kg |
| 100x200 | 18 117,- / 89.07kg |
| 100x220 | 19 011,- / 94.19kg |
| 100x230 | 19 458,- / 96.75kg |
| 100x250 | 20 353,- / 101.87kg |
| 120x120 | 15 435,- / 73.71kg |
| 120x150 | 16 777,- / 81.39kg |
| 120x180 | 18 117,- / 89.07kg |
| 120x210 | 19 458,- / 96.75kg |
| 130x130 | 16 330,- / 78.83kg |
| 130x160 | 17 671,- / 86.51kg |
| 130x190 | 19 011,- / 94.19kg |
| 130x220 | 20 353,- / 101.87kg |
| 130x230 | 20 799,- / 104.43kg |
| 130x250 | 21 692,- / 109.55kg |
| 140x140 | 17 224,- / 83.95kg |
| 150x150 | 18 117,- / 89.07kg |
| 160x160 | 19 011,- / 94.19kg |
| 160x220 | 21 692,- / 109.55kg |
| 160x230 | 22 139,- / 112.11kg |
| 160x250 | 23 033,- / 117.23kg |
| 180x180 | 20 799,- / 104.43kg |
| 200x200 | 22 586,- / 114.67kg |
Rozměry, ceny bez DPH
Zobrazit ceníkManžeta - ocelová

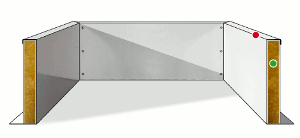

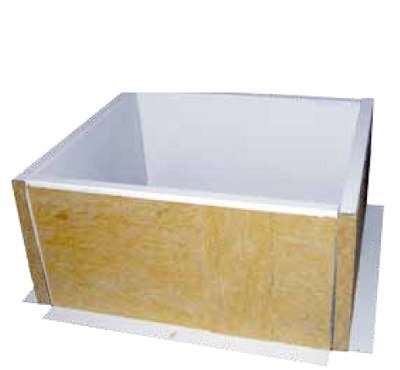

Požární manžeta kolmá z oceli, bílá, lakovaná s izolací
Zobrazit ceník- výška 30, 50 cm
- vnitřní vrstva FeZn plech tl. 1,5 mm, barva RAL 9010
- tepelná izolace, tl. 50 mm
Up = 0,96 W/m2K
TECHNICKÉ LISTY
TECHNICKÉ VÝKRESY
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| 30x30 | 2 455,- / 21.58kg |
| 30x80 | 4 500,- / 36.32kg |
| 40x40 | 3 273,- / 27.47kg |
| 40x70 | 4 500,- / 36.32kg |
| 40x100 | 5 729,- / 45.16kg |
| 50x50 | 4 091,- / 33.37kg |
| 60x60 | 4 910,- / 39.27kg |
| 60x90 | 6 138,- / 48.11kg |
| 60x150 | 8 592,- / 65.8kg |
| 60x200 | 10 638,- / 80.54kg |
| 60x220 | 11 457,- / 86.43kg |
| 70x70 | 5 729,- / 45.16kg |
| 70x100 | 6 956,- / 54.01kg |
| 75x75 | 6 546,- / 50.06kg |
| 75x120 | 7 980,- / 61.38kg |
| 80x80 | 6 546,- / 51.06kg |
| 80x130 | 8 592,- / 65.8kg |
| 80x180 | 10 638,- / 80.54kg |
| 80x220 | 12 275,- / 92.33kg |
| 80x230 | 12 684,- / 95.28kg |
| 80x280 | 14 729,- / 110.02kg |
| 90x90 | 7 365,- / 56.95kg |
| 90x120 | 8 592,- / 65.8kg |
| 90x150 | 9 820,- / 74.64kg |
| 100x100 | 8 183,- / 62.85kg |
| 100x130 | 9 410,- / 71.69kg |
| 100x150 | 10 230,- / 77.59kg |
| 100x160 | 10 638,- / 80.54kg |
| 100x200 | 12 275,- / 92.33kg |
| 100x220 | 13 094,- / 98.23kg |
| 100x230 | 13 502,- / 101.17kg |
| 100x250 | 14 322,- / 107.07kg |
| 120x120 | 9 820,- / 74.64kg |
| 120x150 | 11 048,- / 83.49kg |
| 120x180 | 12 275,- / 92.33kg |
| 120x210 | 13 502,- / 101.17kg |
| 130x130 | 10 638,- / 80.54kg |
| 130x160 | 11 867,- / 89.38kg |
| 130x190 | 13 094,- / 98.23kg |
| 130x220 | 14 322,- / 107.07kg |
| 130x230 | 14 729,- / 110.02kg |
| 130x250 | 15 549,- / 115.91kg |
| 140x140 | 11 457,- / 86.43kg |
| 150x150 | 12 275,- / 92.33kg |
| 160x160 | 13 094,- / 98.23kg |
| 160x220 | 15 549,- / 115.91kg |
| 160x230 | 15 958,- / 118.86kg |
| 160x250 | 16 775,- / 124.76kg |
| 180x180 | 14 729,- / 110.02kg |
| 200x200 | 16 367,- / 121.81kg |
Rozměry, ceny bez DPH
Zobrazit ceník

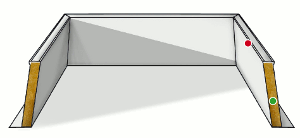

Požární manžeta šikmá z oceli, bílá, lakovaná s izolací
Zobrazit ceník- výška 30, 50 cm
- vnitřní vrstva FeZn plech tl. 1,5 mm, barva RAL 9010
- tepelná izolace, tl. 50 mm
Up = 0,96 W/m2K
TECHNICKÉ LISTY
TECHNICKÉ VÝKRESY
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| 30x30 | 4 091,- / 27.47kg |
| 30x80 | 6 138,- / 42.21kg |
| 40x40 | 4 910,- / 33.37kg |
| 40x70 | 6 138,- / 42.21kg |
| 40x100 | 7 365,- / 51.06kg |
| 50x50 | 5 729,- / 39.27kg |
| 60x60 | 6 546,- / 45.16kg |
| 60x90 | 7 775,- / 54.01kg |
| 60x150 | 10 230,- / 71.69kg |
| 60x200 | 12 275,- / 86.43kg |
| 60x220 | 13 094,- / 92.33kg |
| 70x70 | 7 365,- / 51.06kg |
| 70x100 | 8 592,- / 59.9kg |
| 75x75 | 8 183,- / 57.95kg |
| 75x120 | 9 615,- / 67.27kg |
| 80x80 | 8 183,- / 56.95kg |
| 80x130 | 10 230,- / 71.69kg |
| 80x180 | 12 275,- / 86.43kg |
| 80x220 | 13 913,- / 98.23kg |
| 80x230 | 14 322,- / 101.17kg |
| 80x280 | 16 367,- / 115.91kg |
| 90x90 | 9 003,- / 62.85kg |
| 90x120 | 10 230,- / 71.69kg |
| 90x150 | 11 457,- / 80.54kg |
| 100x100 | 9 820,- / 68.75kg |
| 100x130 | 11 048,- / 77.59kg |
| 100x150 | 11 867,- / 83.49kg |
| 100x160 | 12 275,- / 86.43kg |
| 100x200 | 13 913,- / 98.23kg |
| 100x220 | 14 729,- / 104.12kg |
| 100x230 | 15 139,- / 107.07kg |
| 100x250 | 15 958,- / 112.97kg |
| 120x120 | 11 457,- / 80.54kg |
| 120x150 | 12 684,- / 89.38kg |
| 120x180 | 13 913,- / 98.23kg |
| 120x210 | 15 139,- / 107.07kg |
| 130x130 | 12 275,- / 86.43kg |
| 130x160 | 13 502,- / 95.28kg |
| 130x190 | 14 729,- / 104.12kg |
| 130x220 | 15 958,- / 112.97kg |
| 130x230 | 16 367,- / 115.91kg |
| 130x250 | 17 185,- / 121.81kg |
| 140x140 | 13 094,- / 92.33kg |
| 150x150 | 13 913,- / 98.23kg |
| 160x160 | 14 729,- / 104.12kg |
| 160x220 | 17 185,- / 121.81kg |
| 160x230 | 17 594,- / 124.76kg |
| 160x250 | 18 413,- / 130.65kg |
| 180x180 | 16 367,- / 115.91kg |
| 200x200 | 18 004,- / 127.71kg |
Rozměry, ceny bez DPH
Zobrazit ceníkManžeta - PVC s Fe oplechováním
Požární komfortní manžeta kolmá z tvrzeného PVC s Fe oplechováním
Zobrazit ceník- výška 15, 30, 45, 60, 75 cm
- vnější a vnitřní vrstva tvrzené PVC
- vnitřní izolace polyuretan tl. 30 mm
pro požární aplikace - Fe oplechování
Up = 0,92 W/m2K
TECHNICKÉ LISTY
TECHNICKÉ VÝKRESY
pro požární aplikace - Fe oplechování
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| 30x30 | 7 141,- / 24.37kg |
| 30x80 | 9 819,- / 42.12kg |
| 40x40 | 8 213,- / 31.47kg |
| 40x70 | 9 819,- / 42.12kg |
| 40x100 | 11 425,- / 52.77kg |
| 50x50 | 9 284,- / 38.57kg |
| 60x60 | 10 354,- / 45.67kg |
| 60x90 | 11 961,- / 56.32kg |
| 60x150 | 15 173,- / 77.63kg |
| 60x200 | 19 041,- / 95.38kg |
| 60x220 | 20 184,- / 102.48kg |
| 70x70 | 11 425,- / 52.77kg |
| 70x100 | 13 032,- / 63.42kg |
| 75x75 | 11 961,- / 56.32kg |
| 75x120 | 14 372,- / 72.3kg |
| 80x80 | 12 497,- / 59.87kg |
| 80x130 | 16 186,- / 77.63kg |
| 80x180 | 19 041,- / 95.38kg |
| 80x220 | 21 327,- / 109.59kg |
| 80x230 | 21 898,- / 113.14kg |
| 80x280 | 24 754,- / 130.89kg |
| 90x90 | 13 568,- / 66.98kg |
| 90x120 | 16 186,- / 77.63kg |
| 90x150 | 17 899,- / 88.28kg |
| 100x100 | 15 614,- / 74.08kg |
| 100x130 | 17 329,- / 84.73kg |
| 100x150 | 18 470,- / 91.83kg |
| 100x160 | 19 041,- / 95.38kg |
| 100x200 | 21 327,- / 109.59kg |
| 100x220 | 22 469,- / 116.69kg |
| 100x230 | 23 041,- / 120.24kg |
| 100x250 | 24 182,- / 127.34kg |
| 120x120 | 17 899,- / 88.28kg |
| 120x150 | 19 613,- / 98.93kg |
| 120x180 | 21 327,- / 109.59kg |
| 120x210 | 23 041,- / 120.24kg |
| 130x130 | 19 041,- / 95.38kg |
| 130x160 | 20 754,- / 106.04kg |
| 130x190 | 22 469,- / 116.69kg |
| 130x220 | 24 182,- / 127.34kg |
| 130x230 | 24 754,- / 130.89kg |
| 130x250 | 25 897,- / 137.99kg |
| 140x140 | 20 184,- / 102.48kg |
| 150x150 | 21 327,- / 109.59kg |
| 160x160 | 22 469,- / 116.69kg |
| 160x220 | 25 897,- / 137.99kg |
| 160x230 | 26 468,- / 141.54kg |
| 160x250 | 27 610,- / 148.65kg |
| 180x180 | 24 754,- / 130.89kg |
| 200x200 | 27 039,- / 145.1kg |
Rozměry, ceny bez DPH
Zobrazit ceníkManžeta - laminát

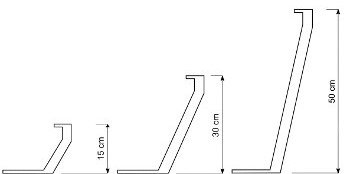

Manžeta kruhová šikmá z laminátu
Zobrazit ceník- výška 15, 30, 50 cm
- Vnější a vnitřní vrstva laminát
- vnitřní izolace polyuretan tl. 30 mm
Up = 0,76 W/m2K (30 mm)
TECHNICKÉ LISTY
| Rozměr A světlost křídla v cm | Cena bez DPH |
|---|---|
| Cena bez DPH | |
| o130 | 16 553,- / 23.5kg |
| o180 | 22 072,- / 31.2kg |
| o50 | 7 725,- / 11.18kg |
| o80 | 11 035,- / 15.8kg |
| o120 | 15 450,- / 21.96kg |
| o160 | 19 863,- / 28.12kg |
| o140 | 17 657,- / 25.04kg |
| o40 | 6 621,- / 9.64kg |
| o70 | 9 932,- / 14.26kg |
| o100 | 13 242,- / 18.88kg |
| o150 | 11 492,- / 8.63kg |
| o200 | 24 278,- / 34.28kg |
| o60 | 8 829,- / 12.72kg |
| o90 | 12 139,- / 17.34kg |
